OLED Grade ITO Coated Glass, Polished

   Visiontek Systems can supply OLED grade ITO, Indium Tin Oxide, transparent conductive coated glass. The ITO is deposited onto polished soda lime float glass giving a range of thicknesses and ITO resistances. Then SiO2 barrier coating is deposited between the ITO and glass.



 OLED ITO glass is becoming increasingly used in flat screen displays in applications such as phones, PDA's and digital cameras. It is also used in a range of development of new devices that require the deposition of ultra thin layers onto conductive substrates .

              OLED ITO GLASS PRODUCT RANGE



Product

ITO resistance

Glass type

Thicknesses available

Maximum sheet size











ITOGLASS 07P

7 ohms/sq

Polished OLED

0.4mm, 0.55mm, 0.7mm, 1.1mm

355 x 406mm

ITOGLASS 10P

10 ohms/sq

Polished OLED

0.4mm, 0.55mm, 0.7mm, 1.1mm, 1.8mm

355 x 406mm

ITOGLASS 15P

15 ohms/sq

Polished OLED

0.55mm, 0.7mm, 1.1mm, 1.8mm

355 x 406mm

ITOGLASS 20P

20 ohms/sq

Polished OLED

0.55mm, 0.7mm, 1.1mm

355 x 406mm

ITOGLASS 40P 40 ohms/sq Polished OLED 0.7mm, 1.1mm 355 X 406mm
ITOGLASS 60P 60 ohms/sq Polished OLED 0.7mm, 1.1mm 355 x 406mm

ITOGLASS 100P

80 ohms/sq

Polished OLED

0.4mm, 0.55mm, 0.7mm, 1.1mm

355 x 406mm

 For polished ITO glass, the roughness is about 1nm.

For un-polished ITO glass, the surface roughness is about 2nm.

The average RMS roughness of ITO is 1~2nm.

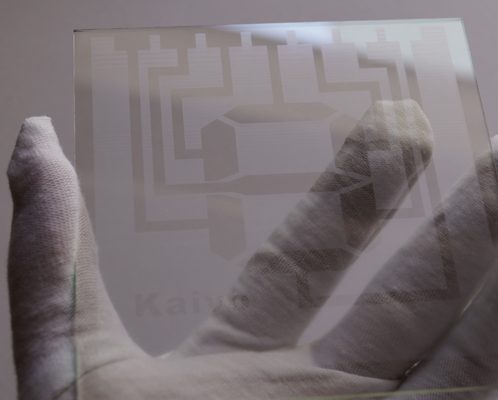

Smaller pieces can be cut and supplied to customer requirements. VisionTek also offers a lithographic service for  patterning ITO.

 Visiontek also supplies standard ITO glass , ITO coated Microscope Slides and Coverslips, ITO Polyester Film and FTO Coated Glass
