AR coating on acrylic and Anti reflective acrylic

VISAR 02 AR Coating For Large Acrylic Sheet

Visiontek Systems have developed a cost effective AR coating that can be supplied in large sheet format. Designed to be used in the large Information Display Market, VISAR 02 AR sheet acrylic is used to improve optical quality, especially in sun light applications.

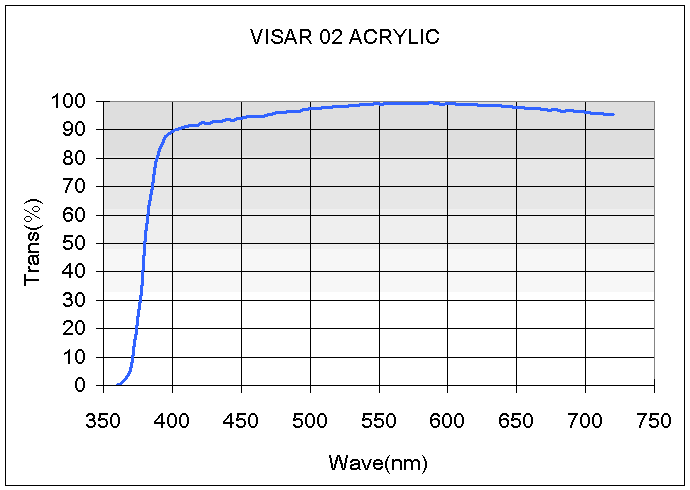

Transmission graph for VISAR 02 Acrylic Sheet

● Maximum acrylic sheet size is 1120 x 1320mm

● Acrylic Sheet available in thicknesses of 2 to 5mm

● Visiontek Systems can supply VISAR 02 AR sheet machined and screen printed to suit your requirements

● Also VISAR 02 can be laminated with additional filters such as polarisers, contrast enhancement filters, EMC mesh and conductive elements to produce complete filters

Durability

Item	Test condition	Results

Abrasion	500 g, 5 strokes	< 10 scratches
Adhesion	Tape Test (3 times)	Pass
Surface hardness	Pencil hardness	5 - 6H
Contact angle	Water contact angle	90 degrees
Heat resistance	500 hours, 80°C	Pass
Humidity resistance	500 hours, 60°C, 95% RH	Pass
Liquid resistance, Hot water	500 hours, 60°C	Pass
Weather resistance	500 hours, Xenon irradiation	Pass
Salt water resistance	28 days, Salt water spray test	Pass

Reflectance graph for VISAR 02 Acrylic Sheet
